Shanli air dryer detail information

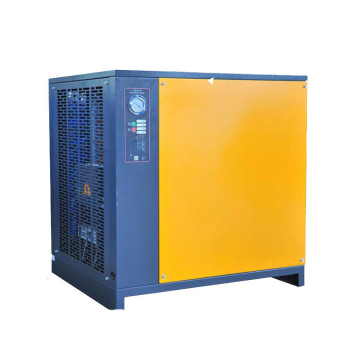

Product name: Air-cooled refrigerated air dryer

Product model: SLAD-0.5NF

Product Function

● Dry, quality air is vital for long-term, trouble-free operation of your processes. SHANLI SLAD series dryers protect your products and systems against damage or corrosion.

● They remove moisture from compressed air with a dew point as low as 2-10 °C/35.6-50 °F. Easy to install, simple to operate and reliable, they provide the dry air you need, allowing you to concentrate on your core business.

Technical Specifications

●  Pressure range: 0.6-1.6 Mpa

●  Max air inlet temp.: 60 Deg C

●  Max ambient temp.: 50 Deg C

●  Max cooling water inlet temp.: 38 Deg C

●  Cooling method: air cooled type / water-cooled type

●  Pressure dew point: 2-10 Deg C

●  Power: 220/380V-1PH-50HZ

●  Refrigerant: R-22 (R-407C, R-134A as optional)

Note: Refrigerated air dryer without metal box board for over 80 m3/ min. Other special standards can be customized.

Working Principle

Refrigeration compressed air dryer makes the water vapor in the compressed air condenses into droplets through cooling so as to achieve the purpose of reducing moisture content. Condensed droplets are discharged by the automatic drainage system.

Annotation:

Performance Parameters

Package and Shipment

● Packing details: Wooden crate pallet plus foam board and bubble film, Full closed wooden case. 1pcs/each package (for stationary desiccant air dryer)

● Transportations: sea transport,  rail transport, air transport, road transport, LCL/ FCL container transport  or as requested

● Trade terms: FOB, CFR, CIF and EXW, DDP, etc.

● Delivery time: in 20 days after receiving deposit (customized machines not included)

Company Information

Hangzhou Shanli Purify Equipment Corporation is an enterprise specialized in design, development and production of compressed air dryers, filters and other

purification equipments. Our company has a workshop of 30, 000 square meters and more than 300 staff. Shanli has become one of the largest refrigerated a

ir dryer manufacturers in the Chinese purification industry with the top sales turnover. Our self-design and self-made equipment is compatible with many famo

us brands of air compressor to efficiently remove water, oil and dustfrom compressed air.

Advantage

1. Quality:

● Certification: CE, ISO-9001, ISO-14001 and 26 patents to ensure unmatched quality of our product assortment.

● Stringent quality control mechanism: updating the involved technology as per prevailing international standards;

● Stable performance: using premium grade raw material from highly reputed manufacturers, like Danfoss, Emerson, Performer, Bitzer, Fusheng, Sprolan;

2. Customer:

● Some of major cooperated customers (from our wide range of customers ) have been enlisted below for reference:

3. Scale:

● Shanli has become one of  largest manufacturers in purifying industry of China with annual sales turnover USD 22 million.

● Shanli has a wide range of customers who have full faith in our service delivery, warranty, quality and workmanship.

Product Applications

There are still some areas and applications where Shanli air dryers can be used, such as power construction, packing food, making ship, cleaning medical molding,removing EDM recast and discoloration, finishing and texturing injection mold cavities, cleaning orifices in turbine blades, engraving optical lenses,cleaning and preparation of semi-precious stones and jewelry, etc.
