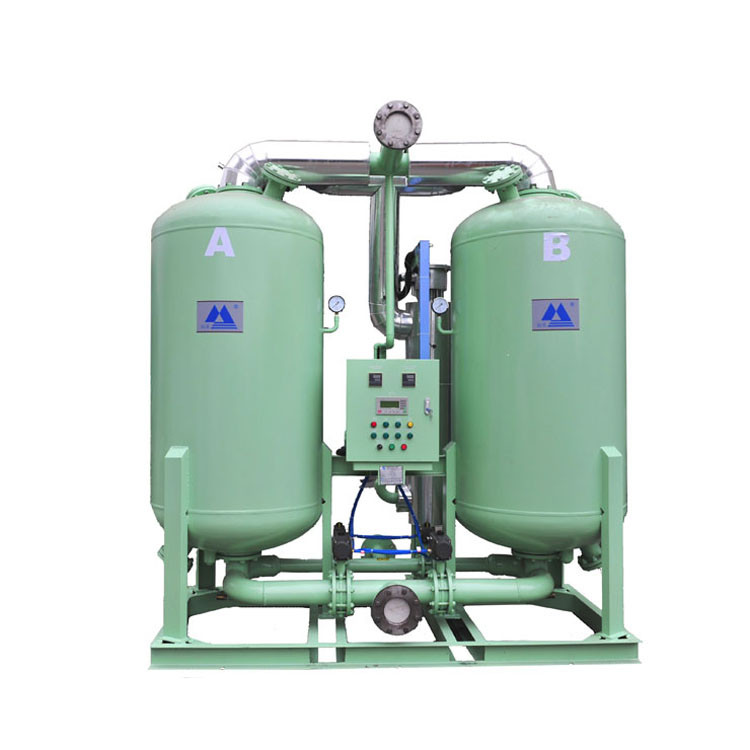

Heated regeneration adsorption air dryer supplier

Heated regeneration adsorption air dryer supplier

Heated regeneration adsorption air dryer supplier
Heated regeneration adsorption air dryer supplierHeated regeneration adsorption air dryer supplierHeated regeneration adsorption air dryer supplierHeated regeneration adsorption air dryer supplier
CategoriesDesiccant air dryer
BrandSHANLI
ModelSLAD-15MXF
Air inlet temp20-45°C
Oil Content<=0.1PPM
Air consumption<=7%
Pressure dew point-40°C
Air inlet pressure0.6~1.0MPa
Pressure loss≤3% of inlet pressure
Place of originHangzhou, China
CertificationCE CCC ISO9001
PowerAC 380V-50HZ/ AC220V-50HZ
Warranty1 year
FOB portShanghai & Ningbo
Terms of PaymentL/C, T/T
Download
Update TimeNov 20,2024
Detail Information

Email:jovelyzou@hzsljh.com

website: www.slairdryer.com

www.shanlidryer.com

Information for Heated regeneration adsorption air dryer supplier

● Regenerative desiccant dryers use desiccant media to dry compressed air through the process of adsorption.

● Dry air with dew points of either -20°C, -30°C, or -40°C can be achieved.

● These extremely low dew points are necessary in critical compressed air applications or for those in extremely cold environments

● In such environments, any moisture remaining in the air would freeze inside compressed air system piping, resulting in blocked flow.


Heated regeneration adsorption air dryer supplier


Technical Specifications for Heated regeneration adsorption air dryer


● Max air inlet temp.: 45 Deg C

● Max air inlet pressure.:0.6-1.0 Mpa

● Air consumption: <=7% of inlet air

● Pressure loss; <=3% of inlet pressure

● Oil content: <=0.1PPM

● Pressure dew point: -40 Deg C (standard type)

● Control method: PLC control

● Power: AC 380V/220V-50HZ

● Cycling time: T=2 h


Working Principle


● During dryer operation, the desiccant media is used to dry the air followed by a period of regeneration when the media is purged of the moisture it collects so it can be used again for drying.

● Twin-tower design of our dryers allows simultaneous air drying and desiccant regeneration-without interruption of compressed air flow.




Note:

1. Gas inlet valve 2. Gas drain valve 3. Silencer
4. Regenerative one-way valve 3. Gas outlet one-way valve A.B. Adsorptive tower


Performance Parameters

Heated regeneration adsorption air dryer supplier

Model  Air
Capacity
Desiccant
Weight
(Kg)
Air
Pipe
Diameter
Net
Weight
(Kg)
Length
(mm)
Width
(mm)
Height
(mm)
(Nm3/min) cfm
SLAD-1MXF 1.2 42 24 G1" 186 812 620 1417
SLAD-2MXF 2.5 88 40 G1" 256 732 586 2017
SLAD-3MXF 3.6 127 60 G1" 341 962 638 1711
SLAD-4.5MXF 4.8 169 85 G1 1/2" 447 842 642 2225
SLAD-6MXF 6.8 240 120 G1 1/2" 630 950 642 2105
SLAD-8MXF 8.5 300 158 G2" 678 1288 696 2231
SLAD-10MXF 10.9 384 190 G2" 810 1288 696 2331
SLAD-12MXF 12.8 451 190 G2" 810 1288 696 2331
SLAD-15MXF 16 564 310 DN65 983 1743 735 2356
SLAD-20MXF 22 775 492 DN65 1271 1933 736 2415
SLAD-25MXF 26.8 945 578 DN80 1371 1903 823 2738
SLAD-30MXF 32 1128 600 DN80 1550 2101 913 2462
SLAD-40MXF 43.5 1533 856 DN100 1994 2200 1002 2576
SLAD-50MXF 53 1868 1002 DN100 2127 2213 1002 2594
SLAD-60MXF 67 2361 1718 DN125 3243 2716 1270 2857
SLAD-80MXF 90 3172 2300 DN125 3698 2816 1453 2911
SLAD-100MXF 110 3877 2800 DN150 4677 3312 1751 3094
SLAD-120MXF 130 4582 3370 DN150 5140 3420 1900 3159
SLAD-150MXF 160 5639 4070 DN200 6126 3812 1900 3378
SLAD-200MXF 210 7402 5530 DN200 8370 4224 2235 3534
SLAD-250MXF 260 9164 6116 DN250 13100 4616 2647 3805
SLAD-300MXF 310 10926 7016 DN250 15000 4816 2802 3883

Package and Shipment


 Packing details: Wooden crate pallet plus foam board and bubble film, Full closed wooden case. 1pcs/each package (for stationary desiccant air dryer)

 Transportations: sea transport,  rail transport, air transport, road transport, LCL/ FCL container transport  or as requested

 Trade terms: FOB, CFR, CIF and EXW, DDP, etc.

 Delivery time: in 20 days after receiving deposit (customized machines not included)




Company Information


● Hangzhou Shanli Purify Equipment Corp., was formed in 1997, as a compressed air solutions company.

● The workshop at integrated engineers and contractors has a dedicated team, which is continuously engaged in upbringing of new technologies for greater efficiency.

● The company was involved in supplying of refrigerated air dryers, desiccant air dryers, compressed air filters, oil water separators and water chillers as a manufacturer, exporter and supplier.


certificate


Advantage


1. Quality:

● Certification: CE, ISO-9001, ISO-14001 and 26 patents to ensure unmatched quality of our product assortment.

● Stringent quality control mechanism: updating the involved technology as per prevailing international standards;

● Stable performance: using premium grade raw material from highly reputed manufacturers, like Danfoss, Emerson, Performer, Bitzer, Fusheng, Sprolan;


2. Customer:


● Some of major cooperated customers (from our wide range of customers ) have been enlisted below for reference:




S.NO.
VALUED CUSTOMERS
S.NO.
VALUED CUSTOMERS
S.NO.
VALUED CUSTOMERS
1 Atlas Copco
2 BOGE Kompressoren
3 Ingersoll Rand
4 CompAir Air Compressors
5 Sinopec Group
6       Sullair Asia


3. Scale:

● Shanli has become one of  largest manufacturers in purifying industry of China with annual sales turnover USD 22 million.

● Shanli has a wide range of customers who have full faith in our service delivery, warranty, quality and workmanship.


company profile


Product Applications


There are still some areas and applications where Shanli air dryers can be used, such as power construction, packing food, making ship, cleaning medical molding,removing EDM recast and discoloration, finishing and texturing injection mold cavities, cleaning orifices inturbine blades, engraving optical lenses,cleaning and preparation of semi-precious stones and jewelry, etc.
